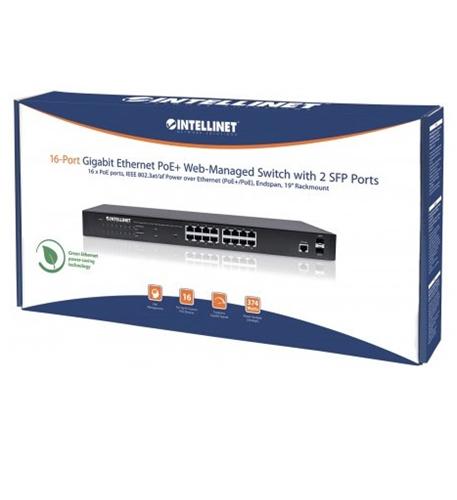

16 PORT GIGABIT POE+ MGD SWITCH
16 PORT GIGABIT POE+ MGD SWITCH
Provides power and data connection for up to 16 PoE network devices Save installation cost by delivering data and power over existing network cables 10/100/1000 auto-sensing ports automatically detect optimal network speeds Two small form-factor pluggable GBIC module slots (SFP) IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports Power output up to 30 watts per port* PoE power budget of 374 watts 36 Gbps switch fabric Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.) Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection All RJ45 ports with Auto-MDIX and NWay auto-negotiation support Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification PoE management functions include PoE port settings, priority, power-on delay, scheduled PoE device restart and PoE device monitoring SNMP Management and Remote Monitoring (RMON) SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9 IPv4/v6 dual protocol Supports VLAN (tag-based and port-based) Provides IEEE 802.1x port-based security Supports link aggregation (trunking) Supports bandwidth control per port Supports port mirroring Supports two types of QoS: port-based and DSCP Broadcast storm control with multicast packet rate settings 512 kBytes buffer memory Supports 8k MAC address entries Supports jumbo frames up to 9 kBytes Supports Rapid Spanning Tree/Spanning Tree protocol Store and forward switching architecture Full/half duplex operation IEEE 802.3x flow control for full duplex Configuration via Web browser, Telnet or SSH LEDs for power, link/activity and PoE Two high-volume cooling fans ensure perfect ventilation Three-Year Warranty
Features
- Backplane Bandwidth - Gbps: 36
- IPv6 or IPv4: Both
- Managed: Yes
- Max PoE Power Consumption - Watts: 410
- Number PoE Ports: 16
- Number SFP Ports: 2
- Packet Buffer Size - Kb: 512
- PoE Support Type: PoE+
- Port Type: Gigabit Ethernet
- Rack Mountable: Yes
- Color: Black
Specifications
Manufacturer: Intellinet
