Bogen Master Control Panel
Bogen Master Control Panel
- Instantaneous two-way communication and distribution of background music or other program material
- Instant emergency and all rooms announcements
- Remote emergency paging capabilities

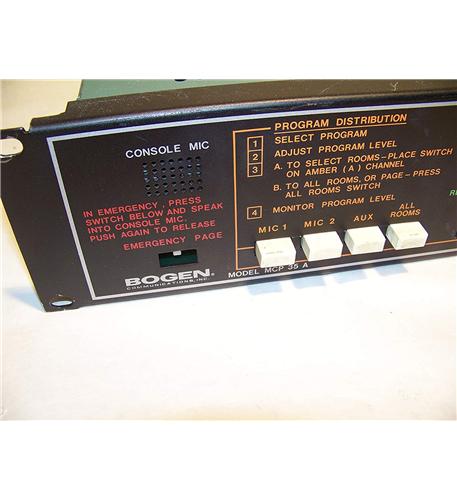

- Color-coded front panel for easy operation includes green guidelines for the intercom channel, amber guidelines for the program channel, and a red push button used for emergency page
- Includes two built-in amplifiers (20-watt intercom amplifier and 35-watt program amplifier)
- Provision for time signaling, telco, and voice call-in
- 2 Lo-Z balanced microphone inputs; 1 Hi-Z unbalanced AUX input
- 25V booster input and telephone paging input
- 25V balanced line output

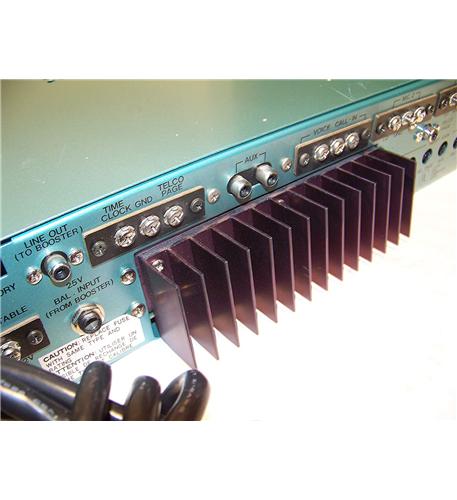

- Terminals provided to activate the time signal feature and telco page feature
- Call-in switches can include a privacy mode
- Operates from a 120V, 60 Hz AC source and consumes no more than 100 watts
- Front panel finished in black
Features
- Amplifiers: Yes
- Audio Processors: Yes
- Input Modules: Yes
- Paging Adapters and Zone Controllers: Yes
- Receivers: Yes
- Color: Black
Specifications
Manufacturer: Bogen
