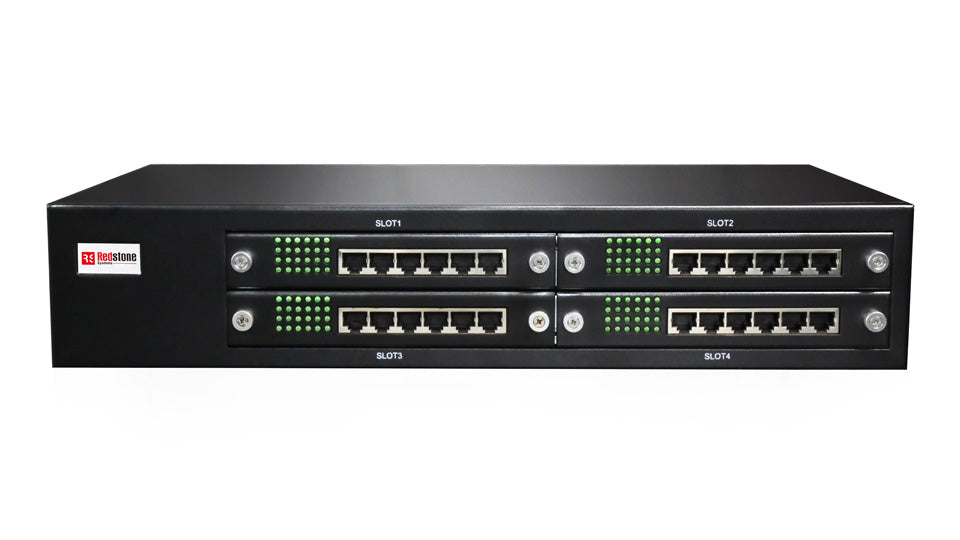

Redstone Chassis RGW96-NA-2U-F Port Analog VoIP Gateway

Original price $1,617.00 - Original price $1,617.00
Original price
$1,617.00 - $1,617.00
Current price $1,617.00

The RGW96 series is a cost-effective, high-performance VoIP gateway with up to 96 FXS and FXO ports, targeting multi-tenant, large contact center and enterprise telephone communication applications, in which reliability and easy maintenance are critical. Powered by innovative VoIP technology from Redstone, the RGW96 allows users to apply it as an N-to-1 system capable of connecting analog phone, fax and POS machine, IP telephony, and PSTN.

  • SIP/MGCP protocols
  • 500 routing and number manipulation rules
  • Fax over IP using T.38 & G.711 pass-through
  • Hot-swappable FXS/FXO interface card
  • Dual redundant Gigabit Ethernet ports
  • Dual AC/DC power supplies available
  • PSTN failover
  • Auto provisioning
  • Remote access via the Redstone Cloud*
  • Management with Redstone or third-party Remote Device Management Systems (TR-069, SNMP)
  • Interoperability with popular SIP servers, such as Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), and Asterisk/Elastix
  • Class I lightning protection
  • RJ21, RJ45 optional
  • SKU No: RGW96-NA-2U-F


FXS/FXO:  48-96
E1/T1:  NA
Max. concurrent calls: 96
Size: 85x440x300mm

RGW96 Datasheet
