Redstone RGW8-6S/2 Port Analog VoIP Gateway

Original price $313.50 - Original price $313.50
Original price
$313.50
$313.50 - $313.50
Current price $313.50

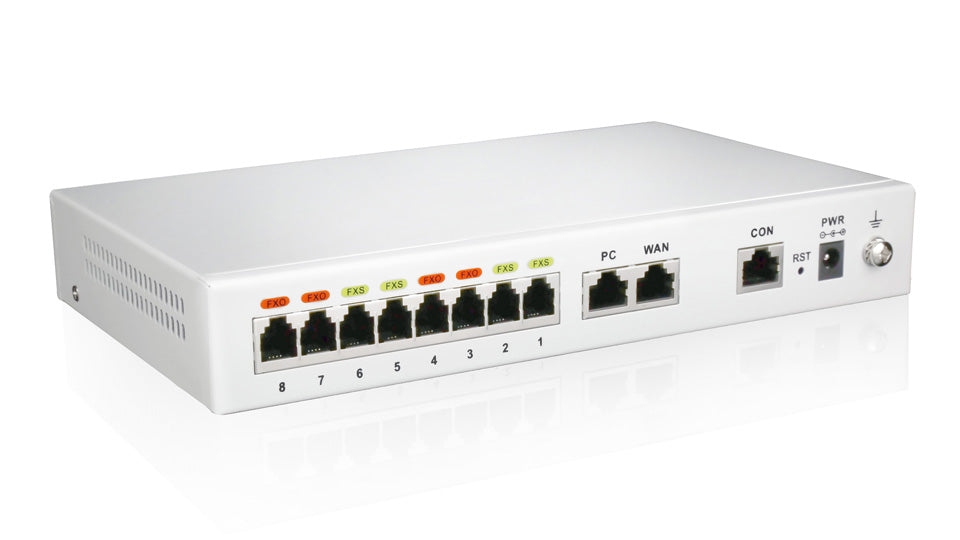

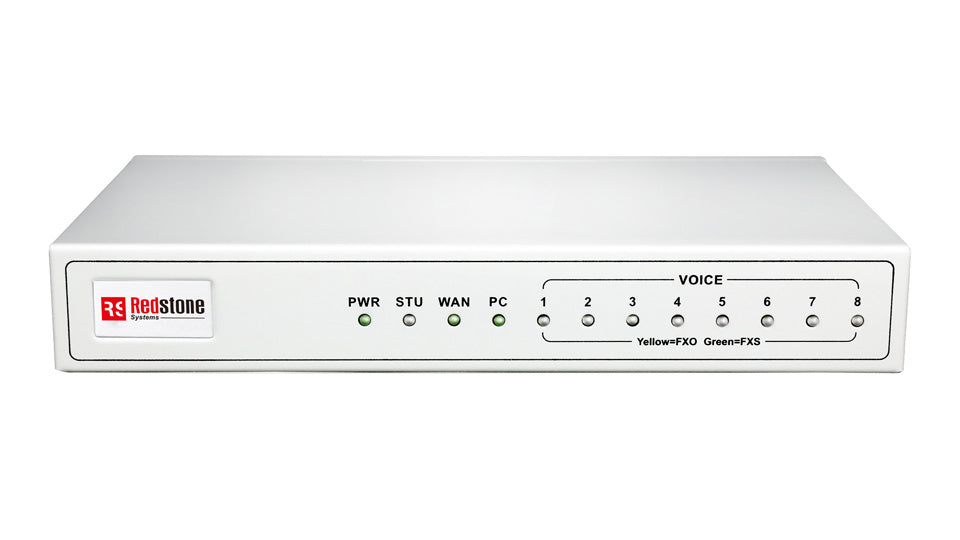

Developed for low-port-count applications, such as fax-terminal connectivity, small businesses, SOHO, and residential IP-telephony applications, the RGW8 analog VoIP gateway is integrated VoIP-FoIP devices that provide reliable and cost-efficient access methods for deploying converged communication solutions for network operators and enterprises. The RGW8 is designed as a compact unit with 4, or 8 FXS/FXO ports, 1 WAN port and 1 PC port (both are 10/100/1000Mbps Ethernet ports), which allows users to apply it as an All-in-One system capable of providing versatile solutions by connecting analog phone, fax and POS machine, IP telephony and PSTN.

Features:
  • FXS Ports: 6
  • FXO Ports: 2
  • 2 Giga ETH
  • IMS/SIP/MGCP protocols
  • Unequalled configurability of FXS and FXO ports
  • TLS/SRTP
  • L2TP/OpenVPN client
  • 500 routing and number-manipulation rules
  • Configurable SIP ports and IP-address whitelist
  • High-speed fax with maximum rate of 33,600 bps by T.38 or G.711 pass-through
  • Polarity-reversal/busy-tone detection
  • High availability & PSTN failover
  • Auto provisioning
  • Remote access via the Redstone Cloud*
  • Management with the Redstone or third-party Remote Device Management Systems (TR-069, SNMP)
  • Interoperability with popular SIP servers, such as Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), and Asterisk/Elastix
  • Class I lightning protection
  • SKU No: RGW8-6S/2

Specifications

FXS/FXO:  8
E1/T1:  NA
Max. concurrent calls:  8
Size:  35x228x135mm

RGW8 Datasheet
