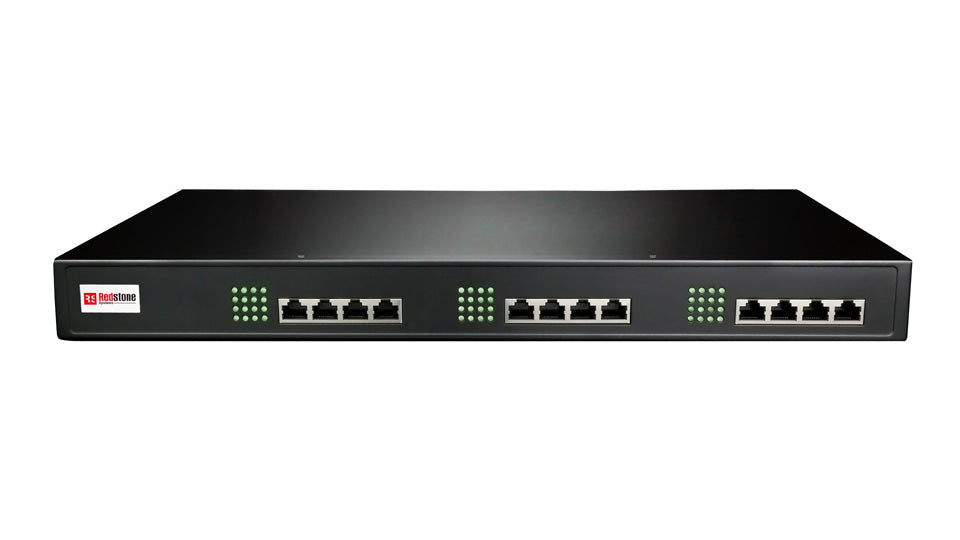

Redstone RGW48-32SC Port Analog VoIP Gateway

Original price $715.00 - Original price $715.00
Original price
$715.00 - $715.00
Current price $715.00

The RGW48 is a reliable, cost-effective, high-performance VoIP gateway with up to 48 FXS/FXO ports, designed to meet the needs of high-traffic contact center and enterprise applications. The feature-rich RGW48 allows users to consolidate analog phones, fax machines, and POS terminals, configurable with up-to-full concurrency over SIP trunks and the PSTN.


  • 32 FXS ports, 32 Concurrent calls, 2 Giga ETH ports, 1U, 19"
  • SIP/MGCP protocols
  • 500 routing and number manipulation rules
  • Fax over IP using T.38 & G.711 pass-through
  • Dual redundant Ethernet ports
  • Dual DC/AC power supplies available
  • PSTN failover
  • Auto provisioning
  • Remote access via the Redstone Cloud*
  • Management with the Redstone or third-party Remote Device Management Systems (TR-069, SNMP)
  • Interoperability with popular SIP servers, such as Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), and Asterisk/Elastix
  • Class I lightning protection
  • SKU No: RGW48-32SC


FXS/FXO:  16-48
E1/T1:  NA
Max concurrent calls: 48
Size: 44x440x260mm

RGW48 Datasheet
