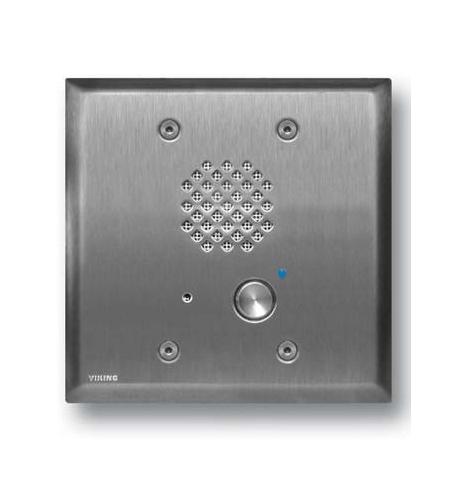

E-60-IP with EWP
E-60-IP with EWP
- Compact: Front panel is the size of a typical double gang mid-size wall plate
- Mounting: Flush mounts in a double gang electrical box (2.25” deepx 3.65” wide x 2.84” tall minimum) or surface mounts in a Viking VE-5x5 (not included, see DOD# 424) for mounting to a wall, post or VE-GNP Gooseneck Pedestal (EWP recommended)
- Available in 4 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Textured Black and Satin White
- PNL-60 faceplates: Replacement faceplates with matching screws available in all four standard finishes
- Self diagnostic reports via email (testing com, mic, speaker & switch)
- Automatic polling and programming software included
- 2 Amp relay contacts for door/gate or SL-2 strobe light control
- Blue LED indicator
- SIP compliant (see pg 2 for list of compatible IP-PBX phone systems)
- PoE powered (class 1, <4 watts)
- Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
- VoIP eliminates the need for “Push to Talk” mode
- Network downloadable firmware
- Handsfree operation
- 304 stainless steel prevents corrosion on the stainless steel models
- Programmable to dial up to 5 numbers on busy or ring no answer
- Cycles through backup phone numbers on busy or no-answer
- Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD# 859
- Hangs up on busy signal, time-out or touch tone command
- Remotely programmable
- Extended temperature range (-40°F to 140°F)
- Volume adjustments for microphone and speaker
Features
- Enhanced Weather Protection: Yes
- Intercoms: Yes
- Intercoms w/Speakers: Yes
- Color: Silver
Specifications
Manufacturer: Viking Electronics
