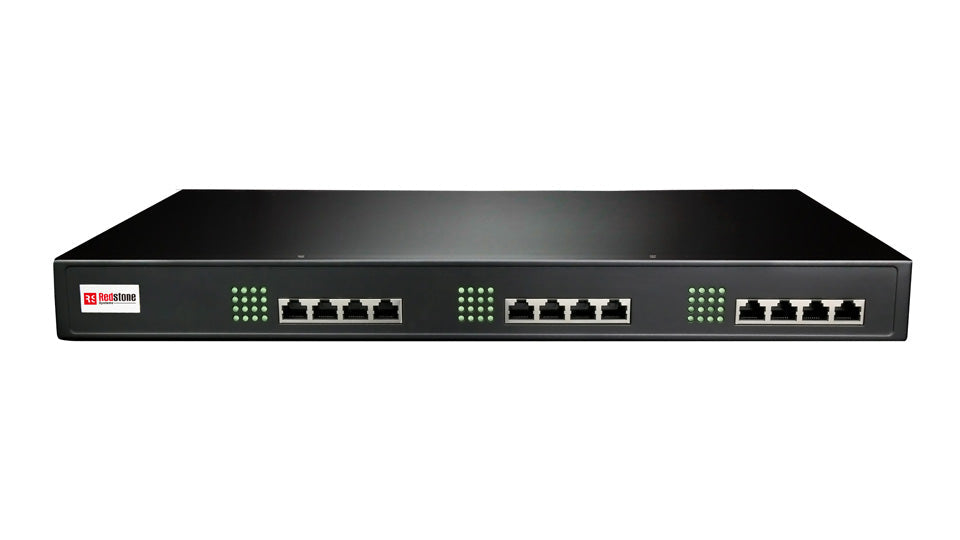

Redstone RGW48-8S/8 Port Analog VoIP Gateway

The RGW48 is a reliable, cost-effective, high-performance VoIP gateway with up to 48 FXS/FXO ports, designed to meet the needs of high-traffic contact center and enterprise applications. The feature-rich RGW48 allows users to consolidate analog phones, fax machines, and POS terminals, configurable with up-to-full concurrency over SIP trunks and the PSTN.

Features:

• 8FXS+8FXO ports, 16 concurrent calls, 2 Giga ETH ports, 1U, 19"
• SIP/MGCP protocols
• 500 routing and number manipulation rules
• Fax over IP using T.38 & G.711 pass-through
• Dual redundant Ethernet ports
• Dual DC/AC power supplies available
• PSTN failover
• TLS/SRTP
• Auto provisioning
• Remote access via the Redstone Cloud*
• Management with the Redstone or third-party Remote Device Management Systems (TR-069, SNMP)
• Interoperability with popular SIP servers, such as Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), and Asterisk/Elastix
• Class I lightning protection
• SKU No: RGW48-8S/8

Specifications

FXS/FXO:  16-48
E1/T1:  NA
Max concurrent calls: 48
Size: 44x440x260mm
